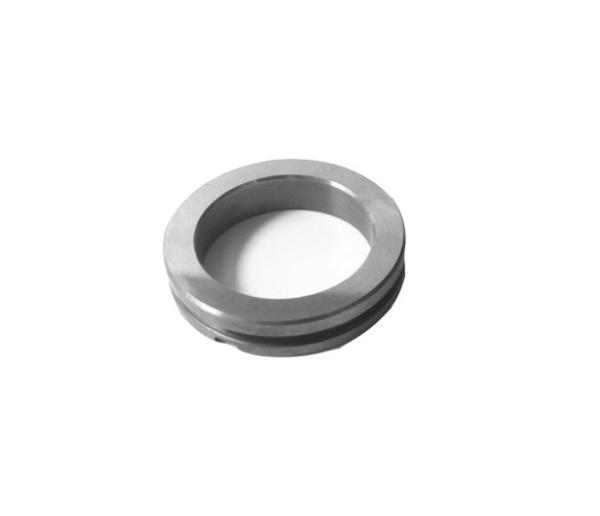

Tungsten Carbide Polished Hydraulic Pump Seal Ring
Product Application
Tungsten Carbide Sealing Ring are used as Mechanical Seal faces in pumps, compressors and agitators. These are uased in oil refineries, petrochemical plants, fertilizer plants and pharmaceutical industries.
1. Petroleum industry
2. Sewerage industry
3. Acid industry
4. Fluidity industry
5. Hydrocarbon industry
| Grade | Application Mediums |
| XC100 | oli,sewage,weak acid and alkaline,light hydrocarbon,solid granules |
| XC101 |
| XC200 |
| XC201 |
| XC401 | dry gas seals |
| XN100 | oil,sewage,weak acid and alkaline,light hydrocarbon,solid granules,sea water |
| XN101 |
| XN300 |
| XN301 |
| XCN30 |
| XCN31 |
| XTP10 | oil,sewage,weak acid and alkaline,light hydrocarbon,solid granules |
| XTN10 | oil,sewage,weak acid and alkaline,light hydrocar |
| Grade | Co (wt%) | Density (g/cm³) | Hardness(HRA) | TRS (≥N/mm²) |
| XC100 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2000 |
| XC101 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2500 |
| XC200 | 7.8-8.2 | 14.5-14.9 | 91.0-92.0 | 2100 |
| XC201 | 7.8-8.2 | 13.5-14.9 | 91.0-92.0 | 2800 |
| XC300 | 9.8-10.3 | 14.2-14.6 | 90.5-91.5 | 2600 |
| XC301 | 9.8-10.3 | 14.2-14.6 | 90.5-91.5 | 3200 |
| XC401 | 12.7-13.2 | 14.0-14.3 | 87.5-88.5 | 3000 |
| Grade | Ni (wt%) | Density (g/cm³) | Hardness(HRA) | TRS (≥N/mm²) |
| XN100 | 6.5-7.5 | 14.5-14.8 | 88.5-91.0 | 1800 |
| XN101 | 6.5-7.5 | 14.5-14.8 | 88.5-91.0 | 2200 |
| XN300 | 10.0-11.0 | 14.2-14.6 | 86.5-89.5 | 2100 |
| XN301 | 10.0-11.0 | 14.2-14.6 | 86.5-89.5 | 2400 |
| XTN10 | 19.5-20.5 | 6.5-7.5 | 90.5-92.0 | 1600 |
| Grade | Co+Ni (wt%) | Density (g/cm³) | Hardness(HRA) | TRS (≥N/mm²) |
| XCN 30 | 9.5-10.5 | 14.0-14.5 | 88.0-90.0 | 2400 |
| XCN31 | 9.5-10.5 | 14.0-14.5 | 88.0-90.0 | 3200 |
| XTP10 | 7.0-9.0 | 11.5-13.0 | 89.5-91.0 | 1800 |
| Spec | Dimension & Tolerance |
| A1 | A2 | A3 |
| d (H13) | D (u6) | H | d (H13) | d1 | D (u6) | H | h | d (H13) | d1 | D (u6) | H | h |
| 18 | 19(20) | 28(26) | 5 | 19(20) | 25(26) | 28 | 5 | 1.5 | 19 | 22 | 28 | 5 | 1.5 |
| 20 | 21(22) | 30(28) | 21(22) | 27(28) | 30 | 21 | 24 | 30 |
| 22 | 23(24) | 32(30) | 23(24) | 29(30) | 32 | 23 | 26 | 32 |
| 24 | 25(26) | 35(32) | 25(26) | 31(32) | 35 | 25 | 29 | 35 |
| 25 | 26(28) | 36(34) | 26(28) | 32(34) | 36 | 26 | 30 | 36 |
| 28 | 29(31) | 39(37) | 6 | 29(31) | 35(37) | 39 | 6 | 29 | 33 | 39 | 6 |
| 30 | 31(33) | 41(39) | 31(33) | 37(39) | 41 | 31 | 35 | 41 |
| 32 | 33(36) | 43(42) | 33(36) | 39(42) | 43 | 33 | 37 | 43 |
| 33 | 34(36) | 44(42) | 34(36) | 40(42) | 44 | 34 | 38 | 44 |
| 35 | 36(38) | 46(44) | 36(38) | 42(44) | 46 | 36 | 40 | 46 |
| 38 | 39(41) | 50(47) | 39(41) | 45(47) | 50 | 39 | 44 | 50 |
| 40 | 41(43) | 52(49) | 41(43) | 47(49) | 52 | 41 | 46 | 52 |
| 43 | 44(46) | 55(52) | 44(46) | 50(52) | 55 | 44 | 49 | 55 |
| 45 | 46(48) | 57(54) | 46(48) | 52(54) | 57 | 46 | 51 | 57 |
| 48 | 49(51) | 60(57) | 49(51) | 55(57) | 60 | 49 | 54 | 60 |
| 50 | 51(53) | 62(59) | 51(53) | 57(59) | 62 | 51 | 56 | 62 |
| 53 | 54(56) | 65(62) | 54(56) | 60(62) | 65 | 54 | 59 | 65 |
| 55 | 56(58) | 67(64) | 56(58) | 62(64) | 67 | 56 | 61 | 67 |
| Spec | Dimension & Tolerance |
| D -0.2 | D (H13) | d1 (h8) | L | L1 | h1 | h | Rubber ring cross-sectionnal diameter |
| 18 | 32.7 | 19 | 26.7 | 20 | 8.5 | 6.5 | 4 | 3.55 |
| 20 | 34.7 | 21 | 28.7 |
| 22 | 36.7 | 23 | 30.7 |
| 24 | 38.7 | 25 | 32.7 |
| 25 | 39.7 | 26 | 33.7 |
| 28 | 42.7 | 29 | 36.7 |
| 30 | 44.7 | 31 | 38.7 |
| 32 | 47.7 | 33 | 41.7 |
| 33 | 47.7 | 34 | 41.7 |
| 35 | 49.7 | 36 | 43.7 |
| 38 | 55.7 | 39 | 48.7 | 21 | 8.9 | 5 | 4.1 |
| 40 | 57.7 | 41 | 50.7 |
| 43 | 60.7 | 44 | 53.7 |
| 45 | 62.7 | 46 | 55.7 |
| 48 | 65.7 | 49 | 58.7 |
| 50 | 69.7 | 51 | 61.7 | 21.5 | 8.8 | 4.7 |
| 53 | 72.7 | 54 | 64.7 |
| 55 | 74.7 | 56 | 66.7 |
| 58 | 77.7 | 59 | 69.7 |
| 60 | 79.7 | 61 | 71.7 |
| 63 | 82.7 | 64 | 74.7 |
| 65 | 84.7 | 66 | 76.7 |
| 68 | 89.7 | 69 | 80.6 |
| 70 | 91.7 | 71 | 82.6 | 22.5 | 9.2 | 5.3 |
| Spec | Dimension & Tolerance |
| D -0.2 | d (H13) | d1 (h8) | L | L1 | Rubber ring cross-sectionnal diameter |
| 14 | 24.7 | 15 | 20.8 | 12.8 | 9.6 | 2.4 |
| 16 | 26.7 | 17 | 22.8 |
| 18 | 32.7 | 19 | 26.8 | 14.5 | 10 | 3.55 |
| 20 | 34.7 | 21 | 28.8 |
| 22 | 36.7 | 23 | 30.8 |
| 24 | 38.7 | 25 | 32.8 |
| 25 | 39.7 | 26 | 33.8 |
| 28 | 42.7 | 29 | 36.8 |
| 30 | 44.7 | 31 | 38.8 |
| 32 | 47.7 | 33 | 41.8 |
| 33 | 47.7 | 34 | 41.8 |
| 35 | 49.7 | 36 | 43.8 |
| 38 | 55.7 | 39 | 48.8 | 15 | 9.9 | 4.1 |
| 40 | 57.7 | 41 | 50.8 |
| 43 | 60.7 | 44 | 53.8 |
| 45 | 62.7 | 46 | 55.8 |
| 48 | 65.7 | 49 | 58.8 |
| 50 | 69.7 | 51 | 61.8 | 15.5 | 9.8 | 4.7 |
| 53 | 72.7 | 54 | 64.8 |
| 55 | 74.7 | 56 | 66.8 |
| 58 | 77.7 | 59 | 69.8 |
| 60 | 79.7 | 61 | 71.8 |
| 63 | 82.7 | 64 | 74.8 |
| 65 | 84.7 | 66 | 76.8 |
| 68 | 89.7 | 69 | 80.8 | 16 | 9.7 | 5.3 |
| Spec | Dimension & Tolerance |
| D -0.1 | D (H13) | d1 (h8) | L | h | h1 | h2 | h3 | Rubber ring cross-sectionnal diameter |
| 14 | 24.8 | 15 | 20.3 | 10 | 2.5 | 3 | 2 | 4.5 | 2.65 |
| 16 | 26.8 | 17 | 22.3 |
| 18 | 32.8 | 19 | 27.7 | 11 | 4.2 | 2.5 | 3.55 |
| 20 | 34.8 | 21 | 28.7 |
| 22 | 36.8 | 23 | 30.7 |
| 24 | 38.8 | 25 | 32.7 | 12 | 3.5 |
| 25 | 39.8 | 26 | 33.7 |
| 28 | 42.8 | 29 | 37.7 |
| 30 | 44.8 | 31 | 38.7 |
| 32 | 47.8 | 33 | 41.7 |
| 33 | 47.8 | 34 | 41.7 |
| 35 | 49.8 | 36 | 43.7 |
| 38 | 55.8 | 39 | 49.7 |
| 40 | 57.8 | 41 | 51.7 | 13 | 4 |
| 43 | 60.8 | 44 | 54.7 |
| Spec | Dimension & Tolerance |
| D (h7) | d (H13) | L | h1 | h2 | Rubber ring cross-sectionnal diameter |
| 14 | 24.8 | 15 | 10 | 2 | 4.5 | 2.65 |
| 16 | 26.8 | 17 |
| 18 | 32.8 | 19 | 11 | 2.5 | 3.55 |
| 20 | 34.8 | 21 |
| 22 | 36.8 | 23 |
| 24 | 38.8 | 25 | 12 |
| 25 | 39.8 | 26 |
| 28 | 42.8 | 29 |
| 30 | 44.8 | 31 |
| 32 | 47.8 | 33 |
| 33 | 47.8 | 34 |
| 35 | 49.8 | 36 |
| 38 | 55.8 | 39 |
| 40 | 57.8 | 41 | 13 |
| 43 | 60.8 | 44 |
| 45 | 62.8 | 46 |
| 48 | 65.8 | 49 |
| 50 | 69.8 | 51 |
| 53 | 71.8 | 54 | 14.5 |
| 55 | 74.8 | 56 |
| Spec | Dimension & Tolerance |
| d (H13) | D (h7) | L |
| 14 | 15 | 23 | 4 |
| 16 | 17 | 25 |
| 18 | 19 | 29 |
| 20 | 21 | 31 |
| 22 | 23 | 33 | 4.5 |
| 24 | 25 | 35 |
| 25 | 26 | 36 | 6 |
| 28 | 29 | 39 |
| 30 | 31 | 41 | 7 |
| 32 | 33 | 44 |
| 33 | 34 | 44 |
| 35 | 36 | 46 |
| 38 | 39 | 51 |
| 40 | 41 | 53 |
| 43 | 44 | 56 | 7.5 |
| 45 | 46 | 58 |
| 48 | 49 | 61 |
| 50 | 51 | 65 |
| 53 | 54 | 68 |
| 55 | 56 | 70 |
Production Process
FAQ
Q1: Is Xingyu trading company or manufacturer ?
A1: We are manufacture of tungsten carbide since established on 1998,specializing in carbide plates/bushings/rollers/special wear parts.
Q2: Has Xingyu acquired the foremost certification of ISO 9001?
A2: Xingyu has been endorsed with the ISO 9001 rating since 2008.
Q3: When can I get the offer after sending inquiry?
A3: We usually quote within 24 hours after we get your inquiry .If you are very urgent to get the price please call us or tell us in your email so that we will regard your inquiry priority.
Q4: Could Xingyu sales staff be reached anytime for assistance regarding orders or general enquire ?
A4: Our sales staff operates between 8am-5pm Monday to Saturday.
